Shuays Surface S3

Exterior Spaces

  • Shuays Surface S3 is a versatile, adjustable spotlight designed for surface mounting on walls, ceilings, or ground bases.
  • It's robust construction and IP68/IK07 rating make it ideal for exterior accent lighting that requires precise aiming and reliable performance.
  • The S3 is perfect for lighting trees, columns, signage, or architectural details where a recessed fixture is not possible, offering high-CRI light quality and powerful output up to 9W.

Enquire Now

Specifications

Product Image
Wattage
6W / 9W
Lumen
265 lm -805 lm
Beam Angle
8°/ 15°/ 30°/ 45°/ 60°/ 90°
Cut out
N/A
IP rating
IP 68
check icon
Full Adjustability
The surface-mounted bracket allows for easy and precise aiming of the light beam on walls, facades, or landscape features.
check icon
Extreme Water Protection
Superior IP68 rating ensures reliable operation even when exposed to heavy rain, sprays, or occasional submersion.
check icon
Safe Low Voltage
Exclusively uses Remote DC24V power, simplifying wiring and ensuring maximum safety for an accessible fixture.
check icon

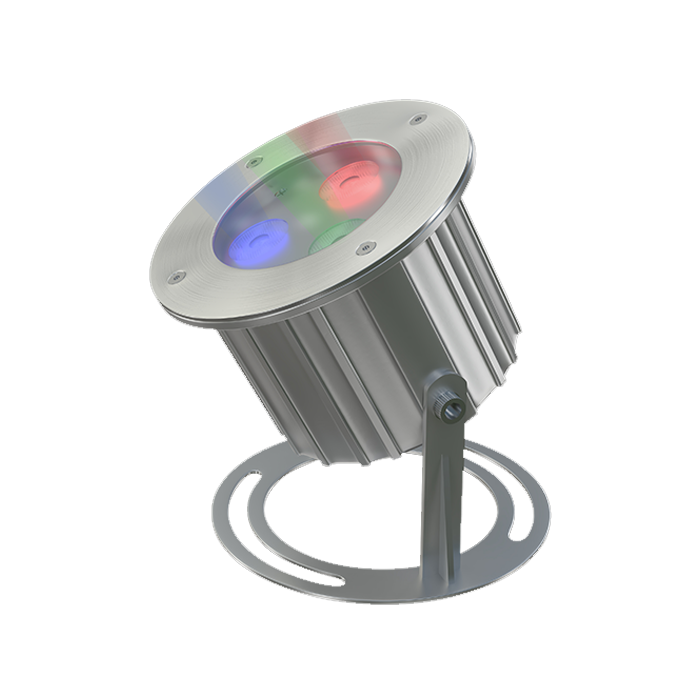

Vibrant Multi-Color
Exceptional lumen output in Red, Green, and Blue for creating complex and dynamic color-changing water scenes.
check icon
Versatile Power Output
Available in 6W or 9W options, providing excellent light throw for medium-distance accent applications.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 540 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 540 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 540 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 540 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 540 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 540 3000 92 90 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 805 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 805 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 805 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 805 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 805 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 805 3000 92 90 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 305 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 305 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 305 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 305 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 305 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 305 Red 92 90 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 460 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 460 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 460 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 460 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 460 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 460 Red 92 90 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 460 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 460 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 460 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 460 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 460 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 460 Green 92 90 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 695 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 695 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 695 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 695 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 695 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 695 Green 92 90 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 265 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 265 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 265 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 265 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 265 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 6 265 Blue 92 90 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 395 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 395 Blue 93 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 395 Blue 94 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 395 Blue 95 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 395 Blue 96 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays Surface S3 3057 Dia 92 x H 73mm 9 395 Blue 97 90 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
