Shuays R6

  • Gallery Image

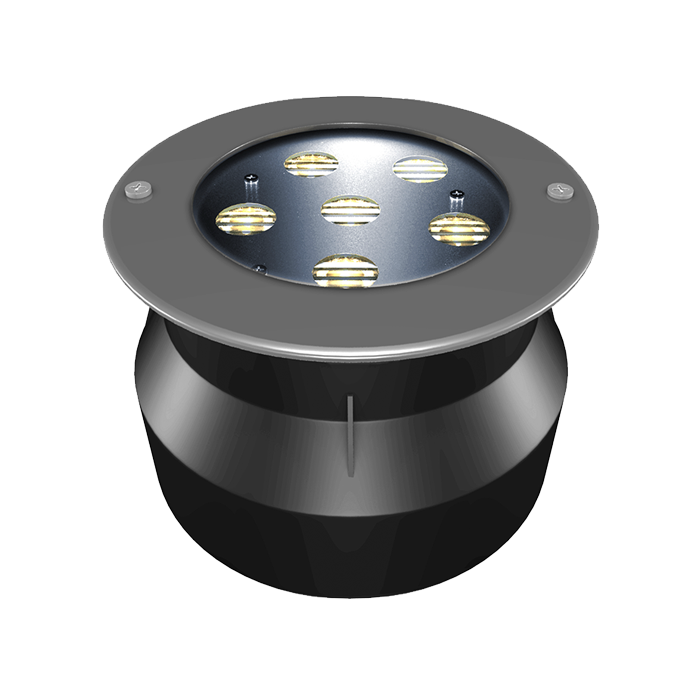

Shuays R6

Exterior Spaces

  • Shuays R6 marks the start of the multi-LED, high-output fixtures in the Shuays series. With a dia of 160mm trim and power up to 18W, the R6 delivers substantial illumination, making it versatile enough for accenting medium-sized trees, columns, and building features.
  • It's IP68 submersible rating combined with an IK08 impact resistance ensures it provides reliable, bright output in harsh environments and high-traffic areas.

Enquire Now

Specifications

Product Image
Wattage
12W/18W
Lumen
530 lm - 1615 lm
Beam Angle
8°/ 15°/ 30°/ 45°/ 60°/ 90°
Cut out
N/A
IP rating
IP 68
check icon
High Output Illumination
Powerful 12W or 18W options deliver up to 1615lm, essential for impactful feature lighting.
check icon
Submersible Durability
IP68 rated for full protection against dust and prolonged submersion, perfect for water features and wetlands.
check icon
Low-Voltage System
Exclusively uses Remote DC24V power, making it safe and easy to integrate into larger landscape lighting networks.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Shuays R6 3053 Dia 160 x H 105mm 18 790 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 790 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 790 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 790 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 790 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 790 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 530 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 530 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 530 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 530 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 530 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 530 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1385 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1385 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1385 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1385 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1385 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1385 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 925 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 925 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 925 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 925 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 925 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 925 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 920 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 920 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 920 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 920 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 920 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 920 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 610 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 610 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 610 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 610 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 610 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 610 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1615 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1615 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1615 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1615 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1615 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 18 1615 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 1075 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 1075 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 1075 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 1075 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 1075 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R6 3053 Dia 160 x H 105mm 12 1075 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
