Shuays R3

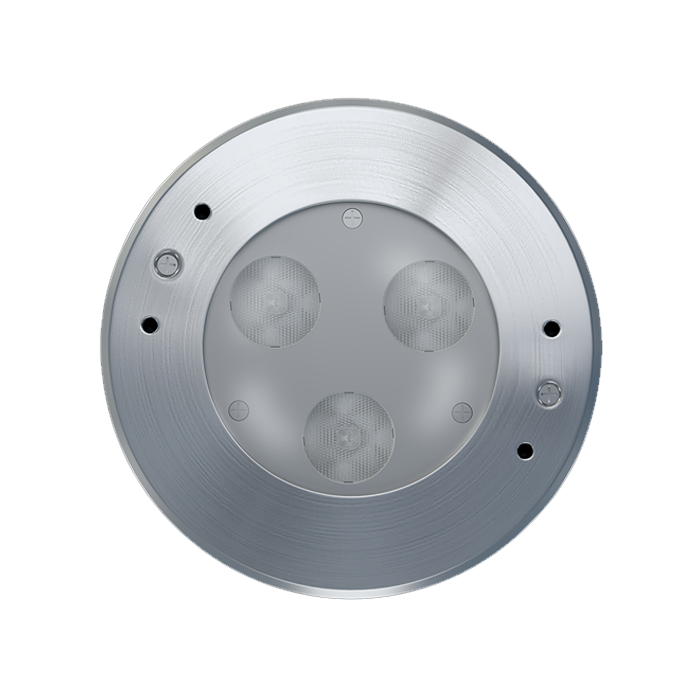

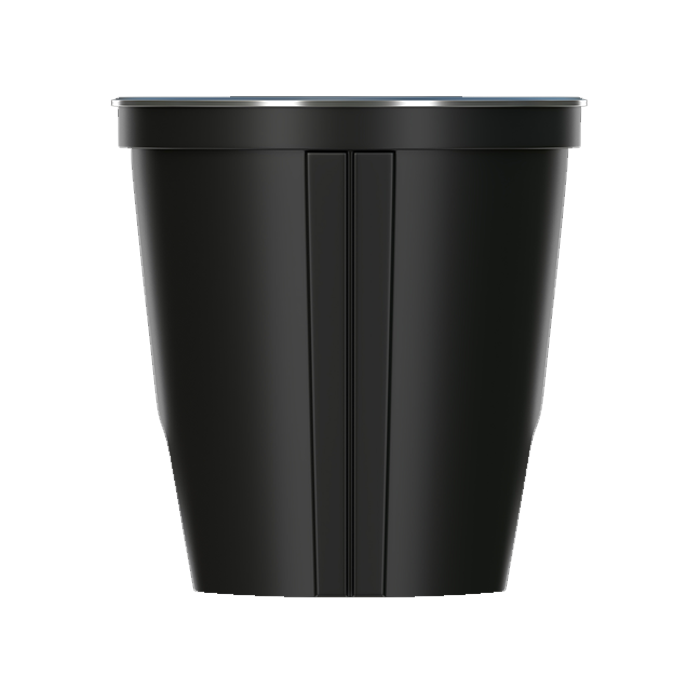

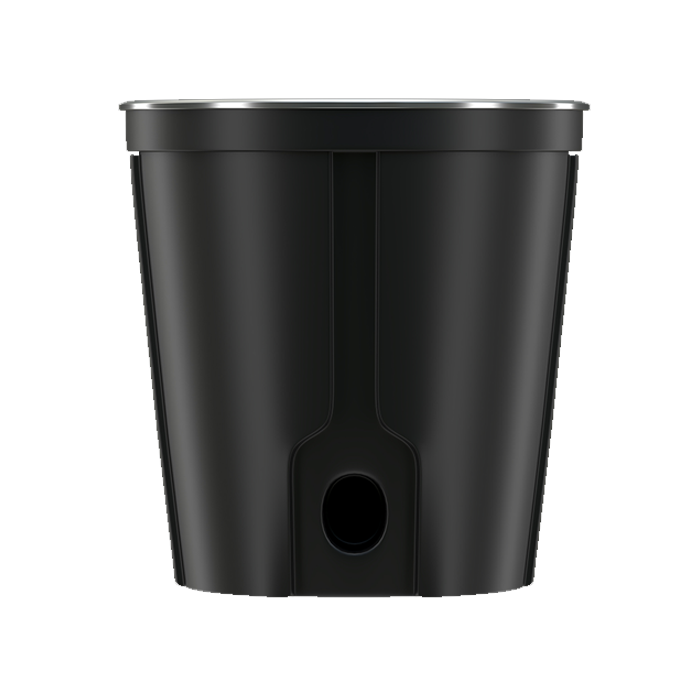

  • Gallery Image
  • Gallery Image
  • Gallery Image
  • Gallery Image

Shuays R3

Exterior Spaces

  • Shuays R3 is the most powerful fixed fixture in the series, designed for applications requiring high lumen output over greater distances.
  • With its dia of 115mm trim and up to 9W of power, it is the fixture of choice for illuminating large trees, building façades, or significant water features.
  • Like its smaller counterparts, the R3 is built with an IP68/IK08 rating, ensuring that high performance never compromises durability in the toughest environmental conditions.

Enquire Now

Specifications

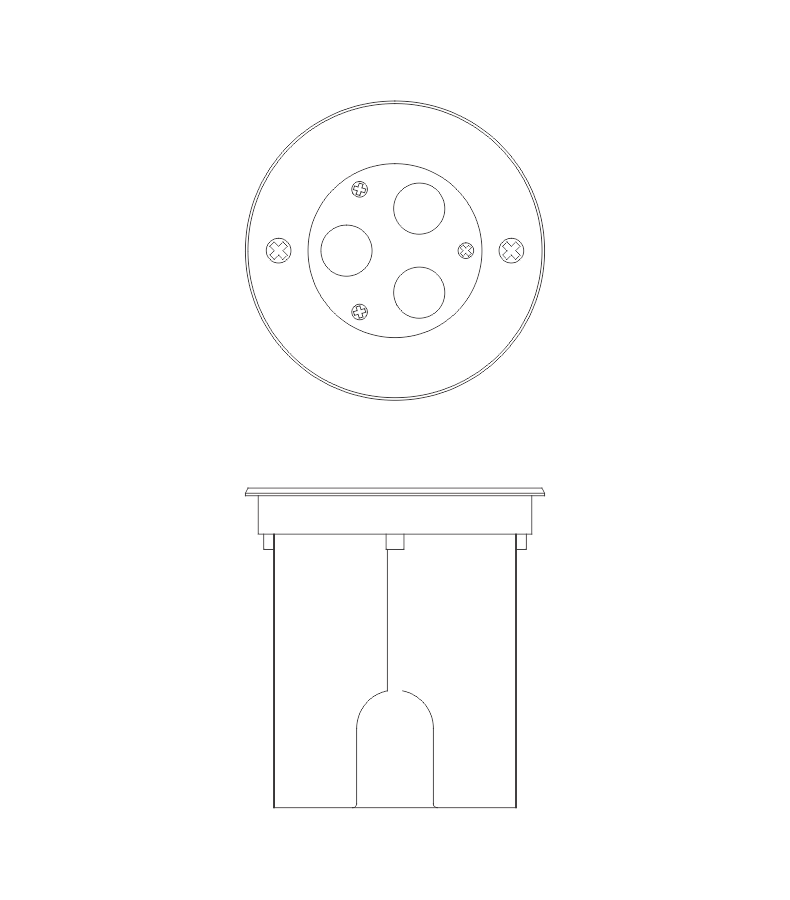

Product Image
Wattage
6W / 9W
Lumen
265 lm - 805 lm
Beam Angle
8°/ 15°/ 30°/ 45°/ 60°/ 90°
Cut out
N/A
IP rating
IP 68
check icon
High Output Illumination
Powerful 6W or 9W options provide the necessary light for illuminating tall or distant architectural and landscape features.
check icon
Full Submersion Capability
IP68 rated for reliable, long-term use in ponds, fountains, and other demanding wet or submerged environments.
check icon
Maximum Durability
Large form factor maintains the IK08 impact rating for superior physical protection in all ground installations.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual

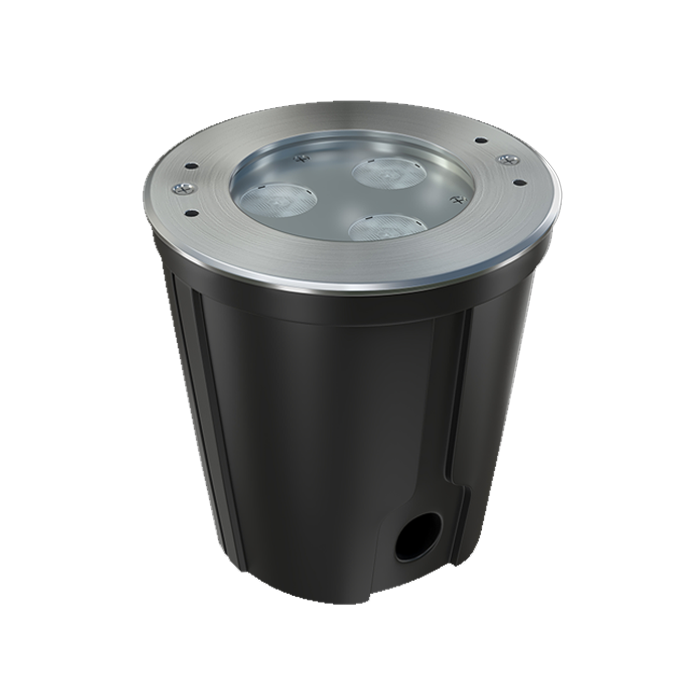

product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 395 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 265 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 695 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 460 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 460 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 305 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 9 805 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R3 3052 Dia 115 x H 125mm 6 540 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
