Shuays R12

  • Gallery Image

Shuays R12

Exterior Spaces

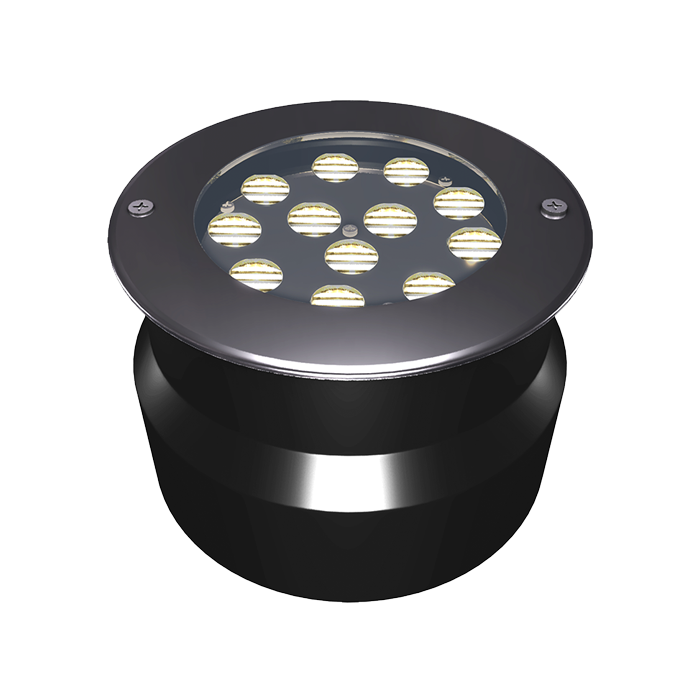

  • The Shuays Underwater LED Light is a high-performance, architecturally designed luminaire specially engineered for swimming pools, fountains, water bodies, and underwater landscape lighting.
  •  Built with premium materials and advanced LED technology, it delivers vibrant illumination with excellent color consistency, long life, and complete reliability in submerged conditions.

Enquire Now

Specifications

Product Image
Wattage
24W/36W
Lumen
1055 lm - 3230 lm
Beam Angle
8°/ 15°/ 30°/ 45°/ 60°/ 90°
Cut out
N/A
IP rating
IP 68
check icon
High Output LED Performance
Available in 24W and 36W variants with luminous output up to 3230 lumens, providing powerful and uniform underwater illumination.
check icon
Advanced Optics
Multiple beam angles for precise light control: 8°, 15°, 30°, 45°, 60°, 90°, and asymmetric (Asy) options to suit different pool sizes and lighting effects.
check icon
Low Voltage & Safe Operation
Operates on DC 24V, making it safe for underwater installations.
check icon
Durable Construction
Stainless steel trim finish provides corrosion resistance against chlorine and water chemicals, ensuring long-term durability.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1585 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1585 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1585 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1585 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1585 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1585 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1055 Blue 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1055 Blue 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1055 Blue 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1055 Blue 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1055 Blue 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1055 Blue 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 2755 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 2755 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 2755 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 2755 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 2755 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 2755 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1845 Green 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1845 Green 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1845 Green 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1845 Green 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1845 Green 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1845 Green 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1835 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1835 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1835 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1835 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1835 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 1835 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1225 Red 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1225 Red 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1225 Red 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1225 Red 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1225 Red 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 1225 Red 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 3230 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 3230 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 3230 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 3230 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 3230 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 36 3230 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 2150 3000 92 Asymmetric IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 2150 3000 92 60 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 2150 3000 92 45 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 2150 3000 92 30 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 2150 3000 92 15 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Shuays R12 3055 Dia 180 x H 118mm 24 2150 3000 92 8 IP68 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
