Aeonic Circle 1×5 (Trim & Trimless)

  • Gallery Image
  • Gallery Image

Aeonic Circle 1×5 (Trim & Trimless)

Interior Spaces

  • The Aeonic Circle 1×5 combines optical uniformity with architectural finesse through five precisely aligned circular reflectors.
  • Designed for both trim and trimless mounting, it produces smooth, uninterrupted illumination ideal for premium interiors.
  • The trimless configuration integrates the push-to-release ceiling protection system, ensuring maintenance ease and ceiling safety

Enquire Now

Specifications

Product Image
Wattage
10W
Lumen
905 lm - 955 lm
Beam Angle
15°/ 24°/ 38°
UGR
<19
IP rating
IP20
check icon
Five Circular Modules
Creates continuous, visually comfortable illumination.
check icon
Push-to-Release Ceiling Protection System (Trimless)
Facilitates effortless access for maintenance and inspection.
check icon
Optimized Beam Uniformity
Delivers balanced illumination with high color accuracy.
check icon
Architectural Versatility
Suits both linear and modular ceiling layouts.
check icon
Comprehensive Dimming Compatibility
Supports Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable systems.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual

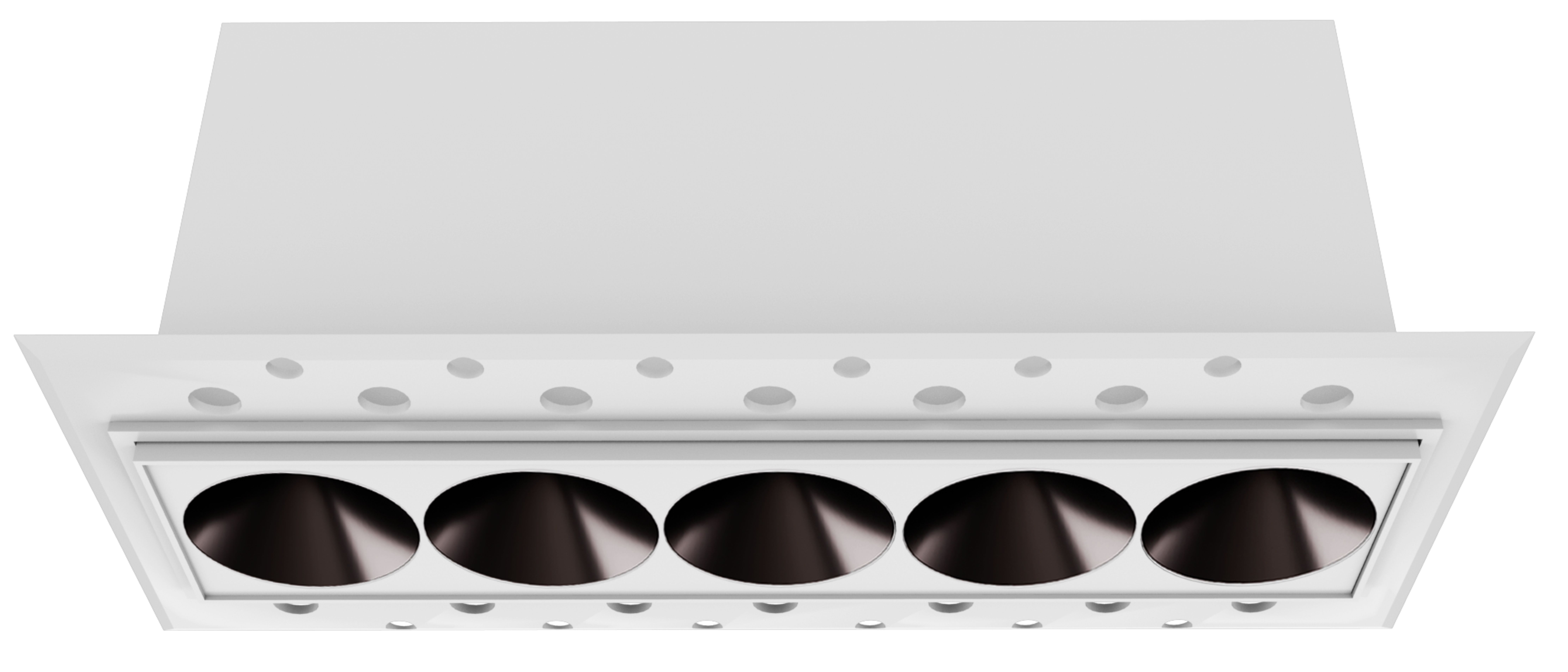

product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 955 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 955 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 955 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 955 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 930 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 930 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 930 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 930 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 905 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 905 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 905 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trimless 1270 W160 x H73 mm 10 905 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 955 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 955 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 955 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 955 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 930 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 930 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 930 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 930 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 905 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 905 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 905 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Circle 1x5-Trim 1269 W147 x H48 mm 10 905 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable - Download Download Download
