Aeonic Brick 1×3 (Trim & Trimless)

  • Gallery Image
  • Gallery Image
  • Gallery Image

Aeonic Brick 1×3 (Trim & Trimless)

Interior Spaces

  • The Aeonic Brick 1×3 combines performance and precision in a versatile three-module configuration.
  • It's diamond-shaped reflectors deliver focused, uniform illumination with excellent glare control, making it ideal for galleries, corridors, and commercial spaces.

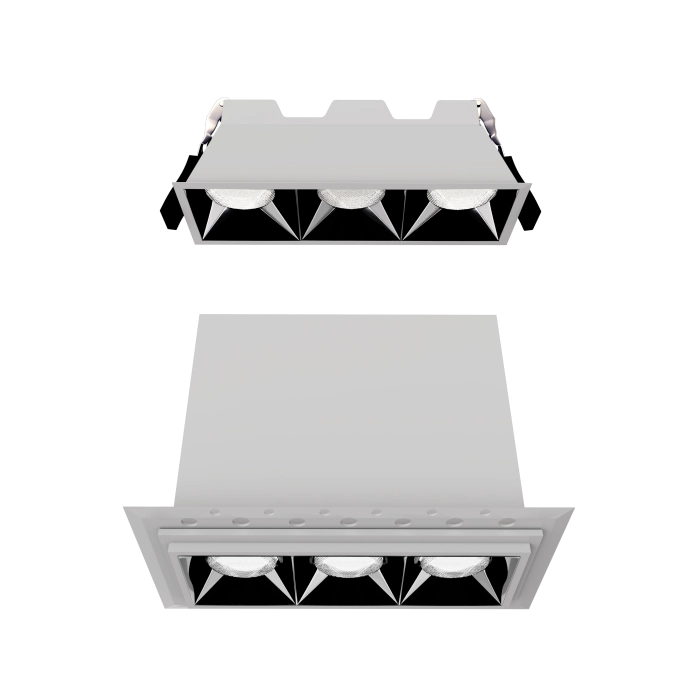

  • Available in trim and trimless variants, the fixture integrates cleanly into any ceiling architecture.
  • The trimless version features an inbuilt push-to-release ceiling protection system that simplifies installation and ensures safe driver access.

Enquire Now

Specifications

Product Image
Wattage
6W
Lumen
550 lm - 580 lm
Beam Angle
15°/24°/38°/60°/ Wallwash
UGR
<19
IP rating
IP20
check icon
Triple Reflector Array
Provides continuous linear illumination with minimal luminance variation.
check icon
Push-to-Release Ceiling Protection System (Trimless)
Allows quick access to fixture and driver while maintaining ceiling integrity.
check icon
Diamond-Shaped Optics
Enhances beam precision and visual definition.
check icon
Architectural Integration
Trim and trimless versions support flexible ceiling design requirements.
check icon
Comprehensive Dimming Compatibility
Supports Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable options.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual

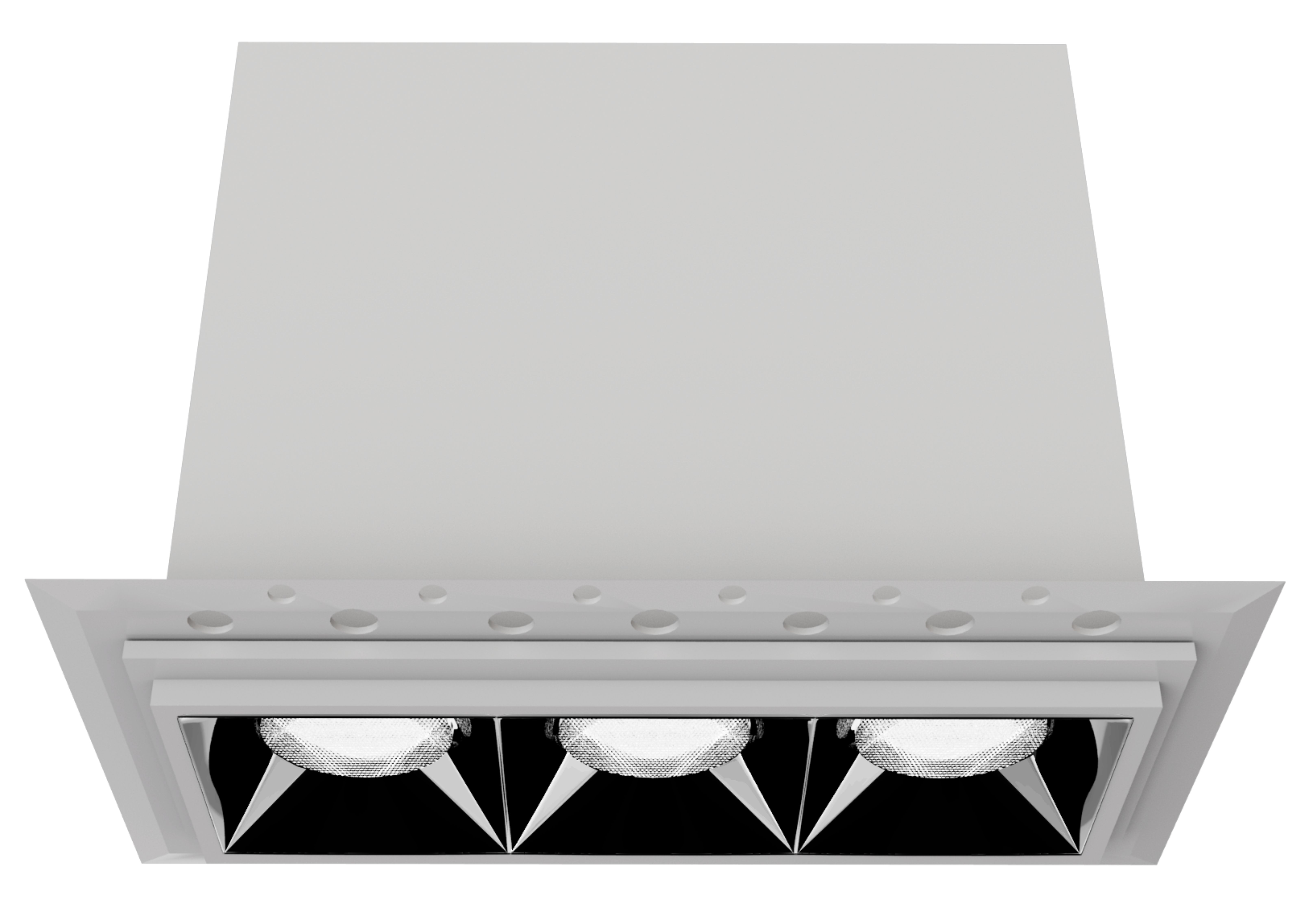

product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 580 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 580 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 580 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 580 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 565 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 565 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 565 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 565 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 550 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 550 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 550 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trimless 1261 W108 x H73 mm 6 550 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download

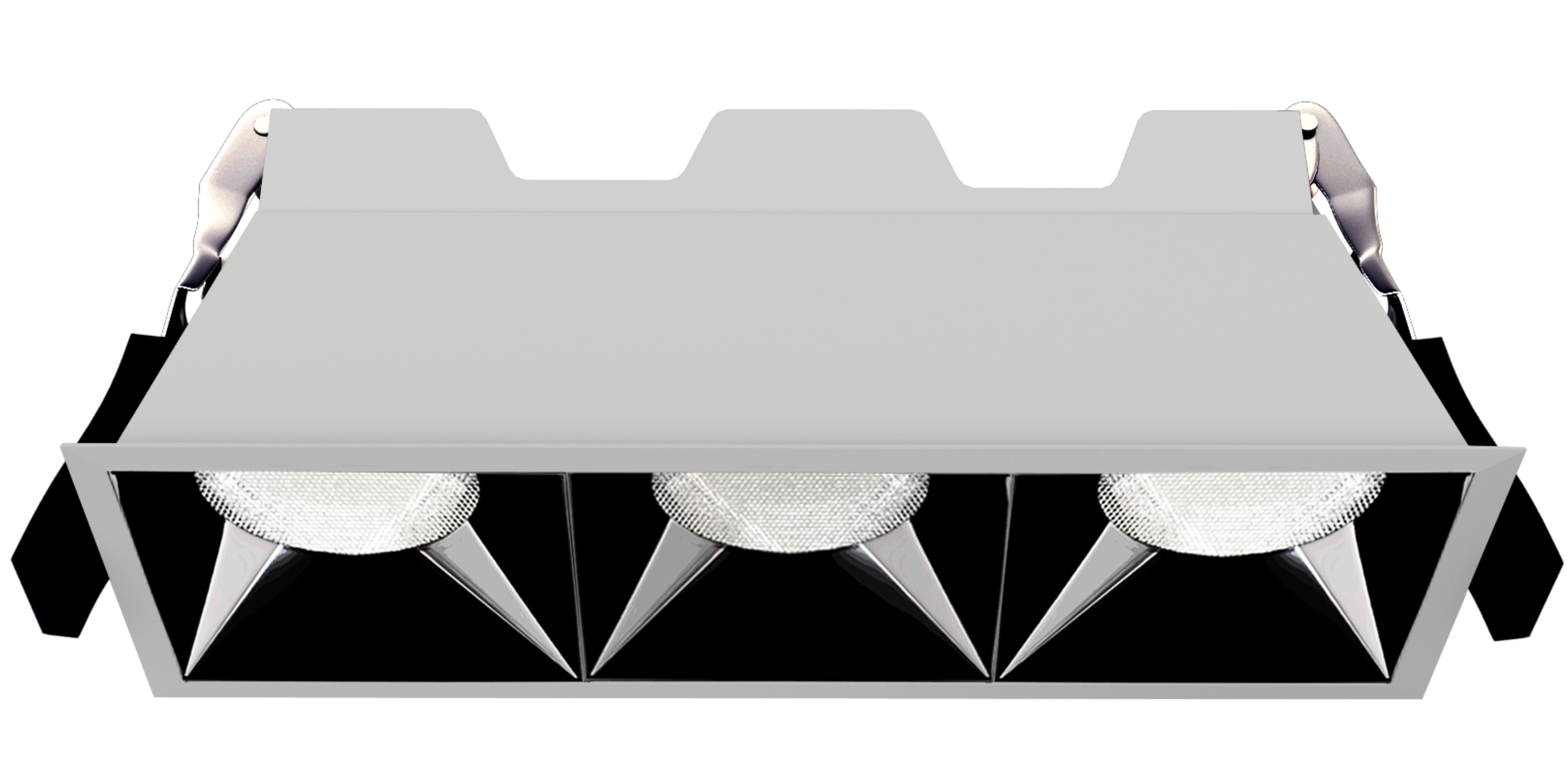

product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 580 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 580 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 580 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 580 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 565 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 565 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 565 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 565 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 550 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 550 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 550 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Trim 1260 W95 x H38 mm 6 550 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
