Aeonic-Brick-1x1

  • Gallery Image

Aeonic-Brick-1x1

Interior Spaces

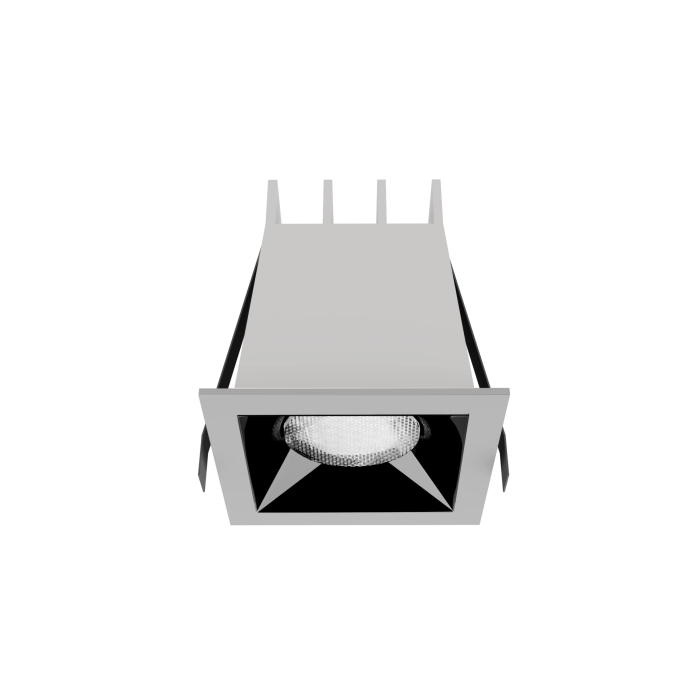

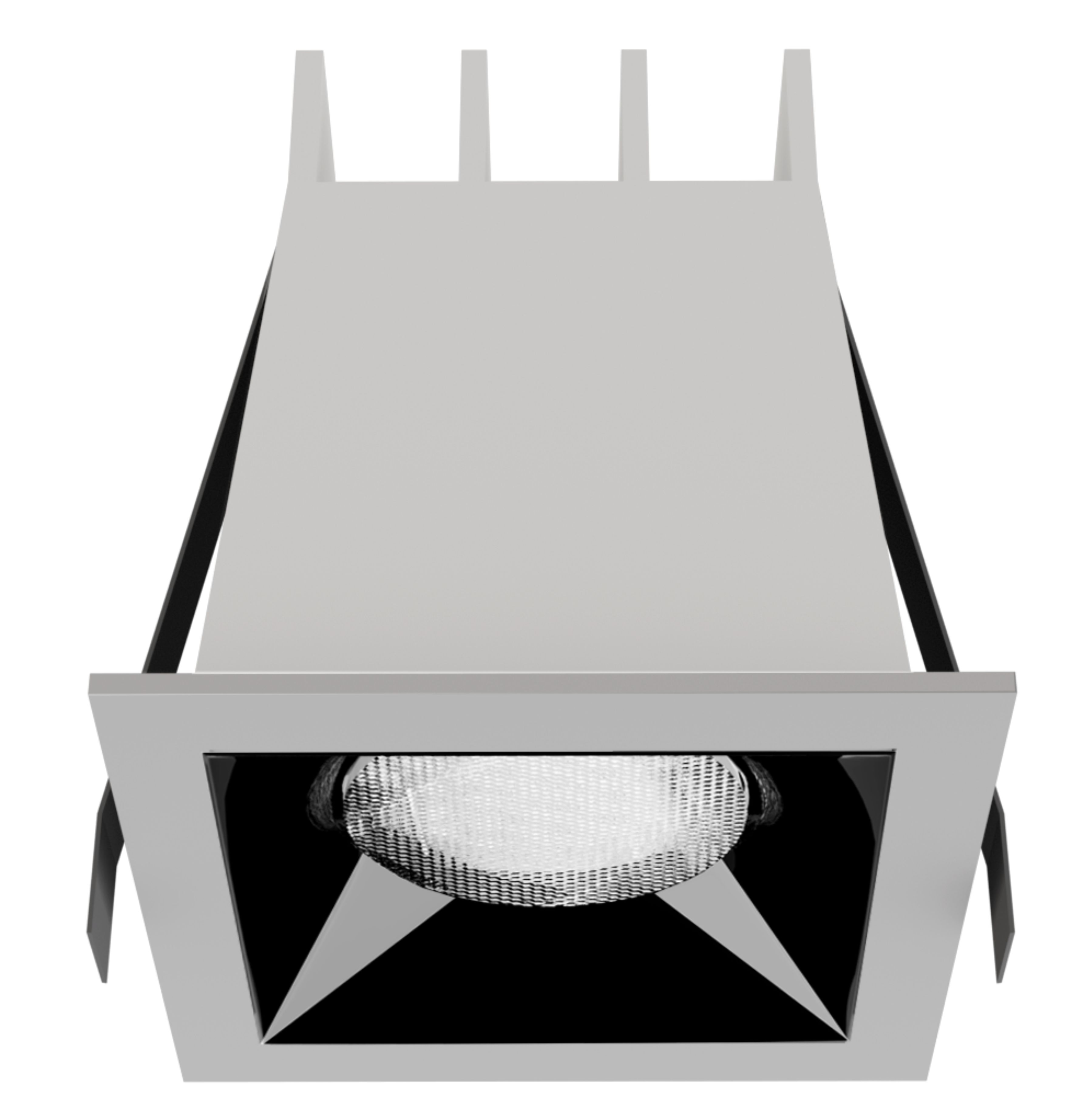

  • The Aeonic Brick 1x1 is a precision-engineered luminaire designed for focused, architectural illumination.
  • Its diamond-shaped reflector delivers defined beam control with excellent glare suppression, ideal for highlighting textures or accenting architectural features.
  •  Compact and efficient, the 1x1 variant integrates seamlessly into ceilings, offering superior performance with a refined geometric aesthetic.

Enquire Now

Specifications

Product Image
Wattage
2W
Lumen
183 lm - 195 lm
Beam Angle
15°/ 24°/ 38°/ 60°
UGR
<19
IP rating
IP20
check icon
Diamond-Shaped Reflector
Provides high-precision optical control and a clean, directional beam for accent and display applications.
check icon
Compact Architectural Design
Streamlined form factor enables easy integration in confined ceiling spaces.
check icon
Visual Comfort
Deep-set light source ensures glare-free illumination with low UGR values.
check icon
Comprehensive Dimming Compatibility
Supports Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable options.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 195 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 195 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 195 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 195 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 190 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 190 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 190 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 190 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 183 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 183 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 183 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x1 1248 W44 x H40 mm 2 183 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
