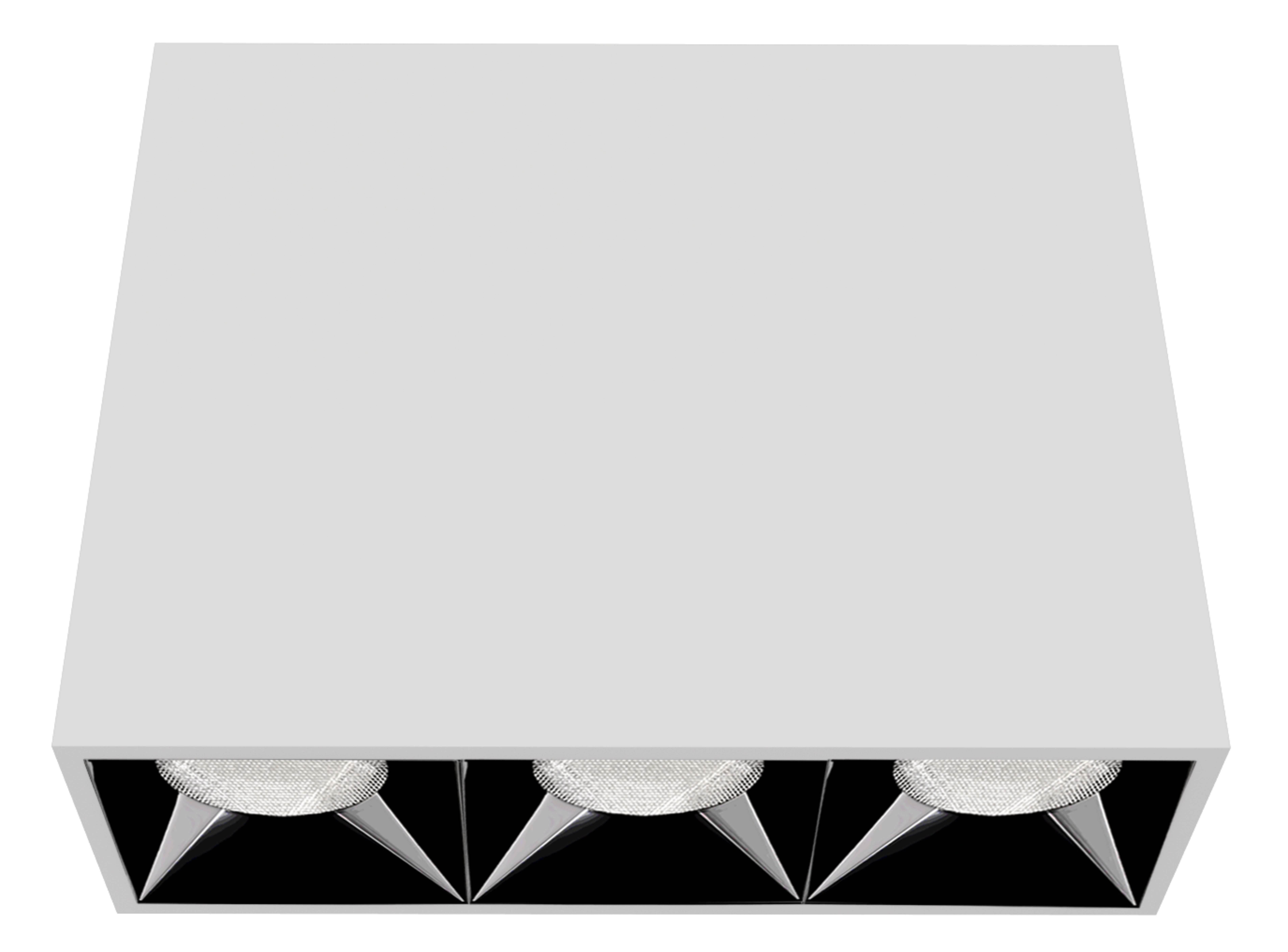

Aeonic Brick Surface 1×3

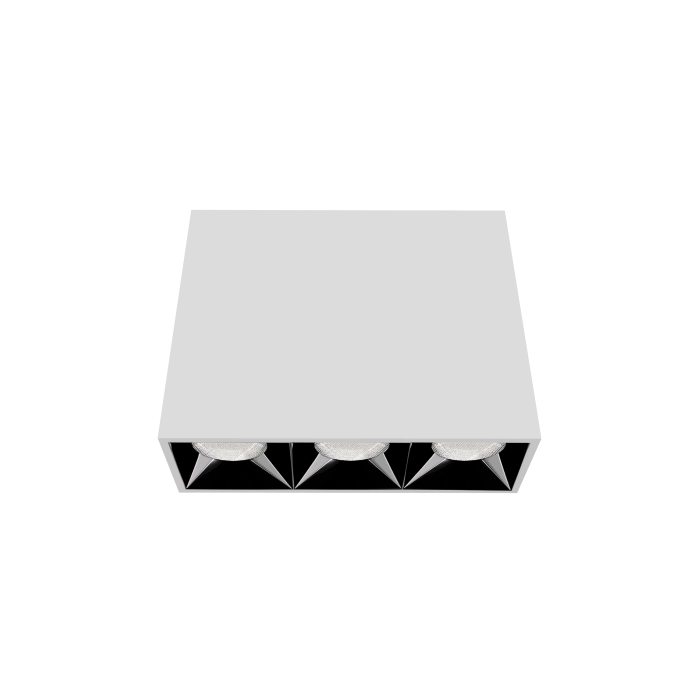

  • Gallery Image

Aeonic Brick Surface 1×3

Interior Spaces

  • Engineered for versatility, the Aeonic Brick Surface 1×3 offers the same optical performance as its recessed counterpart in a surface-mounted format.
  • The integrated power module enables effortless installation on solid or exposed ceilings, while the diamond-reflector array ensures precision lighting and glare control in commercial or hospitality interiors.

Enquire Now

Specifications

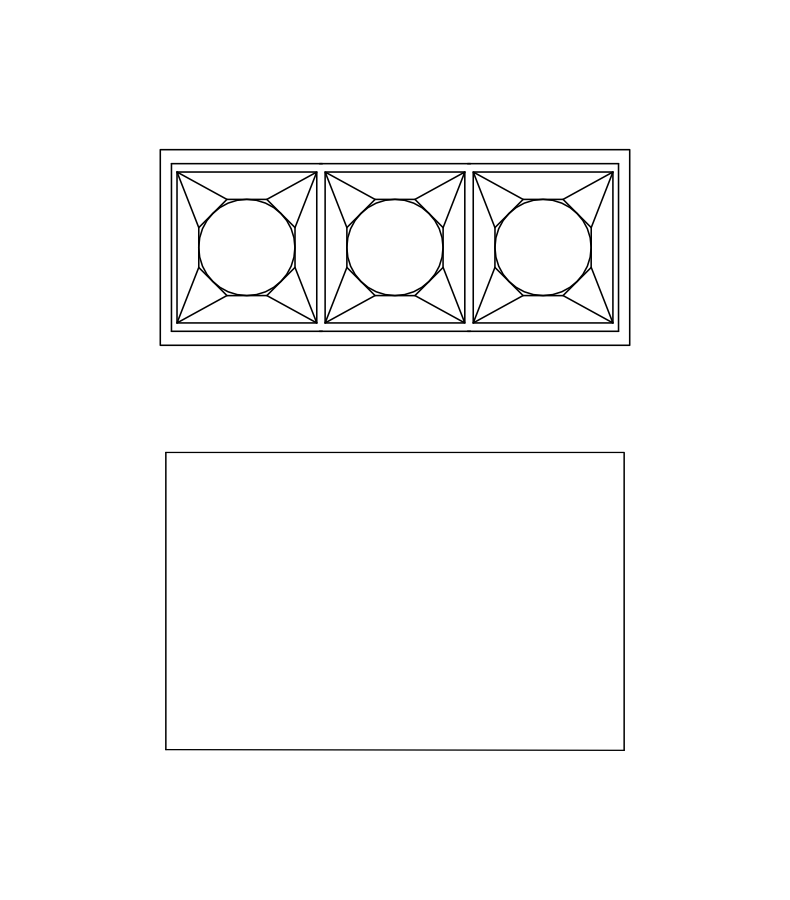

Product Image
Wattage
6W
Lumen
550 lm - 580 lm
Beam Angle
15°/ 24°/ 38°/ 60°/Wallwash
UGR
<19
IP rating
IP20
check icon
Surface-Mounted Architecture
Ideal for retrofit applications or spaces without recessed depth.
check icon
Diamond Reflector Array
Delivers uniform, crisp illumination with controlled beam spread.
check icon
Integrated Driver Housing
Simplifies wiring and enhances thermal performance.
check icon
Comprehensive Dimming Compatibility
Offered with Non-Dimmable, Analog, Triac, DALI, DALI Tunable, and RF Tunable control options.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 580 4000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 580 4000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 580 4000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 580 4000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 565 3000 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 565 3000 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 565 3000 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 565 3000 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 550 2700 92 15 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 550 2700 92 24 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 550 2700 92 38 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
product-img Aeonic Brick 1x3-Surface 1262 W84 x H65 mm 6 550 2700 92 60 IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/Dali Tunable/RF Tunable Download Download Download Download
