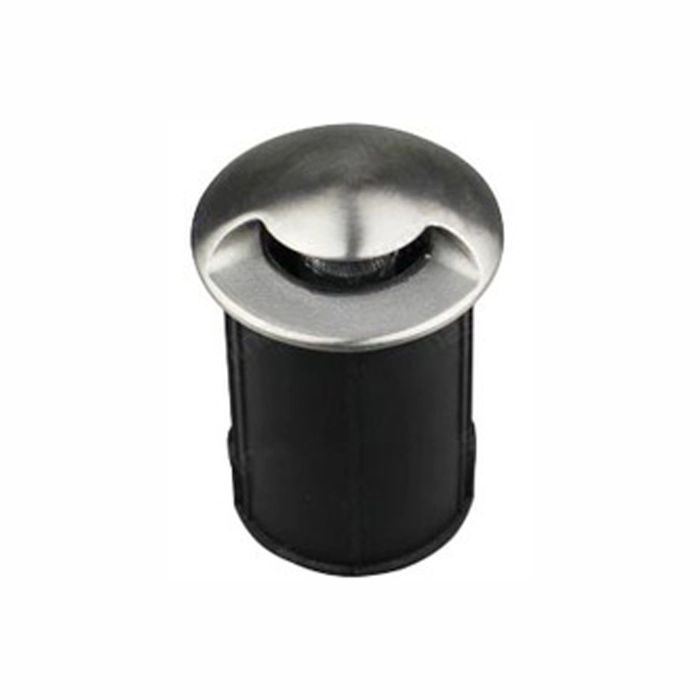

Hypogean Fix Rc3

Hypogean RC3 is a highly specialized in-ground fixture designed to solve complex illumination challenges with its asymmetric light distribution.
Unlike standard round beams, the RC3 pushes light outwards in a controlled pattern, making it perfect for washing walls, lighting stairs, or providing directional guidance without the visible glare of an exposed light source.
This fixture offers unparalleled versatility through its one way, two way and four-way throw, all within a single, robust IP67/IK08 rated housing.

Enquire Now

Wattage

Lumen

190 lm-195 lm

Beam angle

60×1°/60×2°/60×4°

Cut out

N/A

IP Rating

IP67

Versatile Light Throw

Available in 1 Way, 2 Way, and 4 Way light throw options, allowing a single fixture model to cover multiple directional lighting needs.

Extreme Protection & Durability

IP67 rated for full waterproofing and IK08 impact resistance, suitable for ground installations near building entrances.

Power and Control

Provides 3W output and supports both In-built AC230V and Remote DC24V power, compatible with Dali, Triac, and Analog dimming.

Size

Wattage

Lumens

CCT

CRI

Beam Angle

Model Name	Model No	Size	Wattage	Lumens	CCT	CRI	Beam Angle	IP Rating	Accessories	Dimming Option	Specssheet	2D	3D	Installation Manual
Hypogean Fix Rc3	3038	Dia 55 x H 102mm	3	195	3000	92	60x3	IP67	NA	Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX	Download	Download	Download	Download
Hypogean Fix Rc3	3038	Dia 55 x H 102mm	3	195	3000	92	60x2	IP67	NA	Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX	Download	Download	Download	Download
Hypogean Fix Rc3	3038	Dia 55 x H 102mm	3	195	3000	92	60x1	IP67	NA	Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX	Download	Download	Download	Download
Hypogean Fix Rc3	3038	Dia 55 x H 102mm	3	190	2700	92	60x3	IP67	NA	Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX	Download	Download	Download	Download
Hypogean Fix Rc3	3038	Dia 55 x H 102mm	3	190	2700	92	60x2	IP67	NA	Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX	Download	Download	Download	Download
Hypogean Fix Rc3	3038	Dia 55 x H 102mm	3	190	2700	92	60x1	IP67	NA	Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX	Download	Download	Download	Download
