Hypogean Fix R9

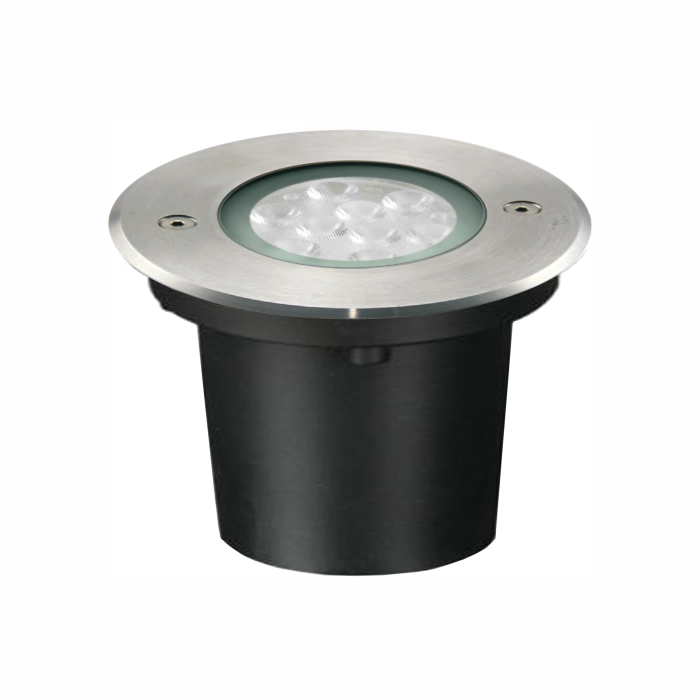

  • Gallery Image

Hypogean Fix R9

Exterior Spaces

  • Hypogean R9 is engineered for demanding applications that require substantial light output.
  • With up to 18W of power packed into the dia 160mm housing, the R9 is the choice for highlighting significant architectural features, large trees, or structures that need illumination from a distance.
  • It combines the highest lumen packages in its size class with the versatility of multiple narrow and wide beams, making it a professional-grade uplighting powerhouse.

Enquire Now

Specifications

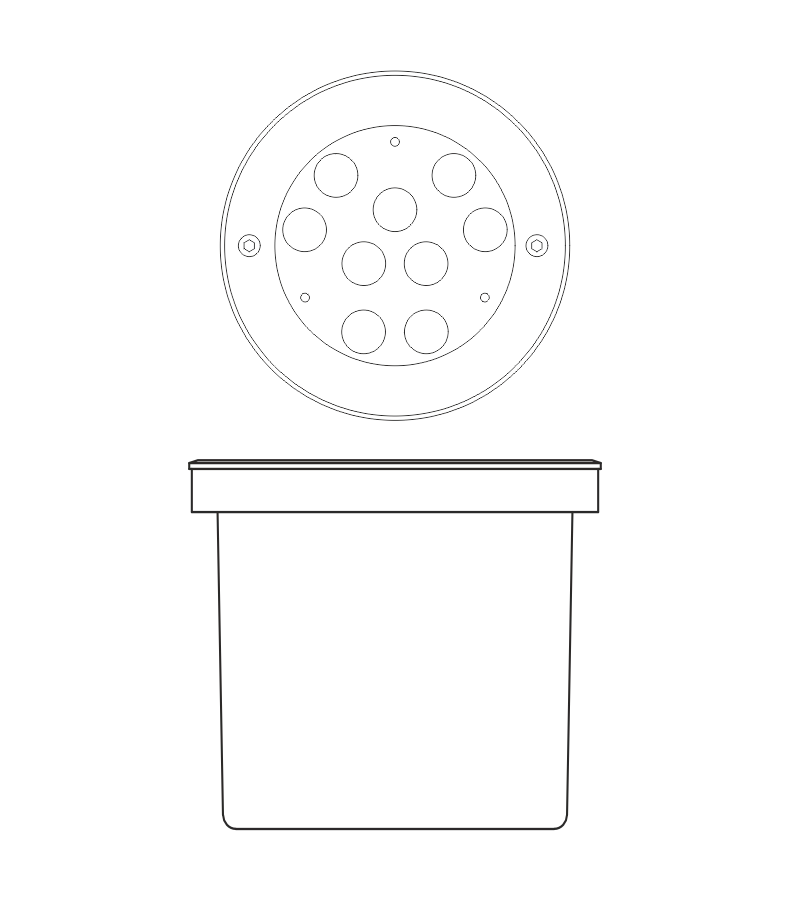

Product Image
Wattage
9W-18W
Lumen
705 lm-1450 lm
Beam angle
8°/15°/30°/45°/60°/Asy
Cut out
N/A
IP Rating
IP67
check icon
Maximum Mid-Size Power
9W or 18W output provides the highest lumens in the Dia 160mm size category for dramatic, long-throw lighting.
check icon
Uncompromising Protection
Built tough with IP67 and IK08 ratings to ensure consistent operation in high-traffic, exposed locations.
check icon
Full Color Fidelity
High Typ CRI 92 ensures that powerful illumination does not compromise the visual quality or color of the subject material.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 650 Blue 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 650 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 650 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 650 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 650 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 650 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 325 Blue 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 325 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 325 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 325 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 325 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 325 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1245 Green 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1245 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1245 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1245 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1245 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1245 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 620 Green 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 620 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 620 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 620 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 620 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 620 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 775 Red 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 775 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 775 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 775 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 775 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 775 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 385 Red 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 385 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 385 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 385 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 385 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 385 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1450 3000 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1450 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1450 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1450 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1450 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1450 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 725 3000 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 725 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 725 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 725 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 725 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 725 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1415 2700 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1415 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1415 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1415 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1415 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 18 1415 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 705 2700 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 705 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 705 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 705 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 705 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R9 3040 Dia 160 x H 128mm 9 705 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
