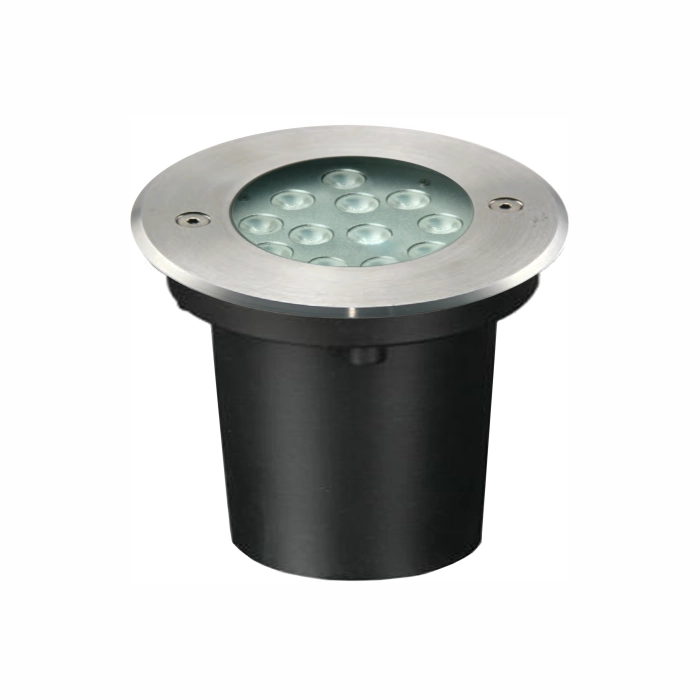

Hypogean Fix R12

Exterior Spaces

  • Hypogean R12 is the largest and most powerful fixed in-ground fixture in the series.
  • With an increased dia of 186mm and up to 24W of power, this fixture is designed for applications where high light levels over vast distances are non-negotiable, such as illuminating entire building facades or very large landscape elements.
  • The R12 delivers the greatest throw and brightest saturation while maintaining the high-CRI and durability standards of the entire Hypogean line.

Enquire Now

Specifications

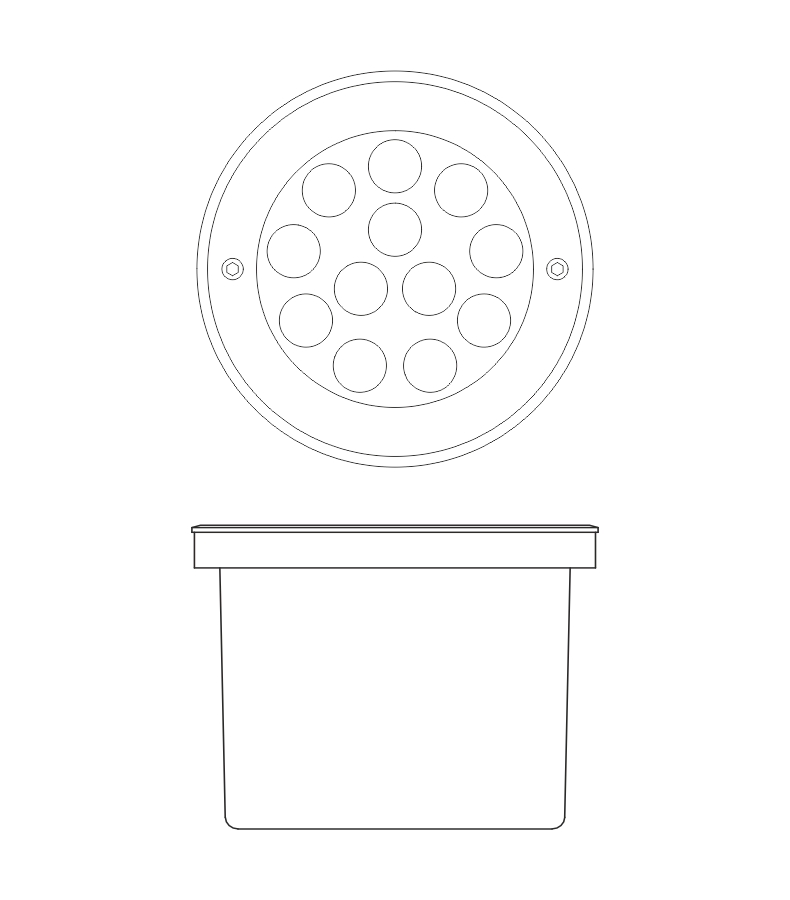

Product Image
Wattage
12W-24W
Lumen
940 lm-1930 lm
Beam angle
8°/15°/30°/45°/60°/Asy
Cut out
N/A
IP Rating
IP67
check icon
Highest Lumen Output
Exceptional 12W or 24W power options deliver the maximum light output for illuminating the largest features and structures.
check icon
Largest Trim Size
$\phi 186$mm size provides the necessary thermal management and surface area for high-wattage performance.
check icon
Optimal Beam for Coverage
Provides multiple symmetric and the essential Asymmetric beam option for effective broad-area coverage.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 865 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 430 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1655 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 825 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1030 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 515 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1930 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 965 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 24 1885 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 Asymmetric IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix R12 3041 Dia 186 x H 105mm 12 940 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
