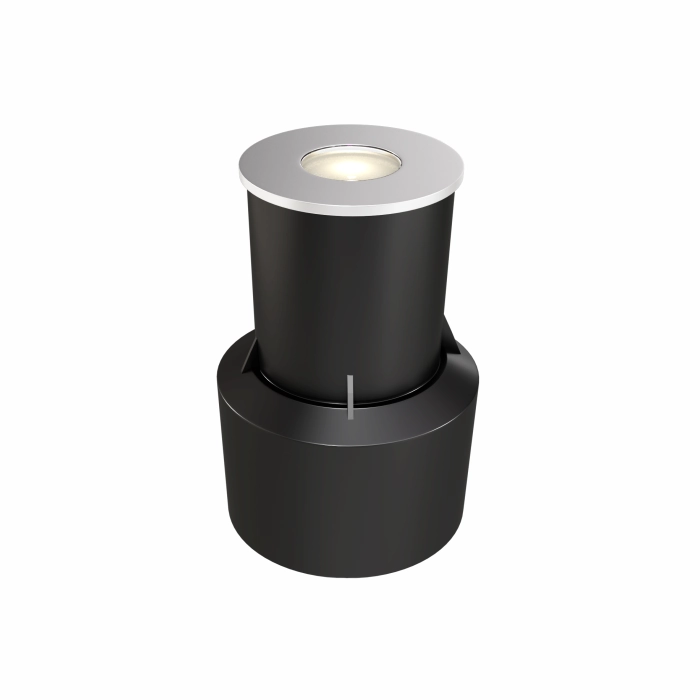

Hypogean Fix Mini

  • Gallery Image

Hypogean Fix Mini

Exterior Spaces

  • Hypogean Mini provides a perfect balance of compact size and versatile performance.
  • Slightly larger than the Micro, the Mini offers a powerful 1W or 3W output, making it highly effective for both accent lighting and general uplighting.
  • It's size makes it manageable for numerous applications, while its multiple beam angle options ensure it can handle everything from highlighting columns to providing gentle area illumination.
  • The Mini is the go-to fixture for designers seeking flexibility without sacrificing quality or durability.

Enquire Now

Specifications

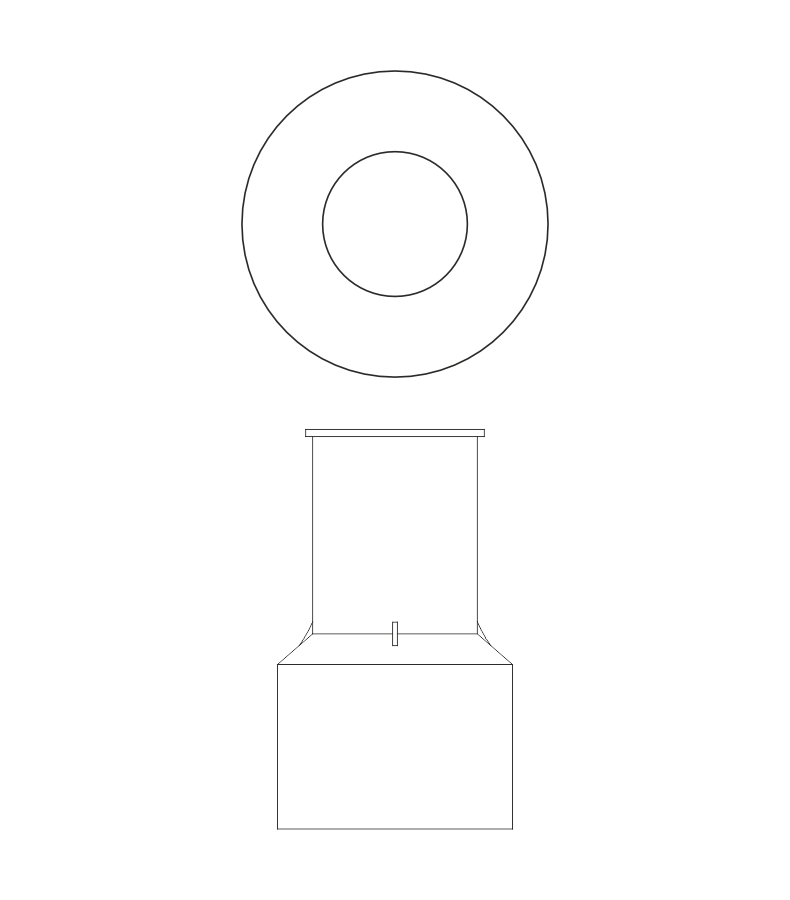

Product Image
Wattage
1W / 3W
Lumen
73 lm- 223 lm
Beam angle
8°/15°/30°/45°/60°
Cut out
N/A
IP Rating
IP67
check icon
Balanced Performance
Excellent output options (1W or 3W) in a manageable size ($\phi 38$mm trim) for a wide range of accent applications.
check icon
High Ingress Protection
Certified with an IP67 rating, making it suitable for wet and subterranean environments.
check icon
Safe and Reliable Power
Exclusively uses the Remote DC24V driver for low-voltage safety and ease of system integration.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 87 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 87 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 87 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 87 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 87 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 29 Blue 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 29 Blue 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 29 Blue 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 29 Blue 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 29 Blue 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 185 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 185 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 185 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 185 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 185 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 62 Green 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 62 Green 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 62 Green 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 62 Green 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 62 Green 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 110 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 110 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 110 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 110 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 110 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 36 Red 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 36 Red 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 36 Red 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 36 Red 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 36 Red 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 223 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 223 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 223 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 223 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 223 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 75 3000 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 75 3000 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 75 3000 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 75 3000 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 75 3000 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 218 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 218 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 218 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 218 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 3 218 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 73 2700 92 60 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 73 2700 92 45 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 73 2700 92 30 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 73 2700 92 15 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
product-img Hypogean Fix Mini 3035 Dia 38 x H 85mm 1 73 2700 92 8 IP67 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DMX Download Download Download Download
