Opus-Wide-Trim & Trimless

  • Gallery Image
  • Gallery Image
  • Gallery Image

Opus-Wide-Trim & Trimless

Interior Spaces

  • The Opus Wide Series is designed to deliver broad, uniform illumination across larger interior spaces while maintaining architectural precision and visual balance. Combining high-output LED performance with refined optical engineering, Opus Wide provides excellent coverage with consistent brightness and color accuracy.

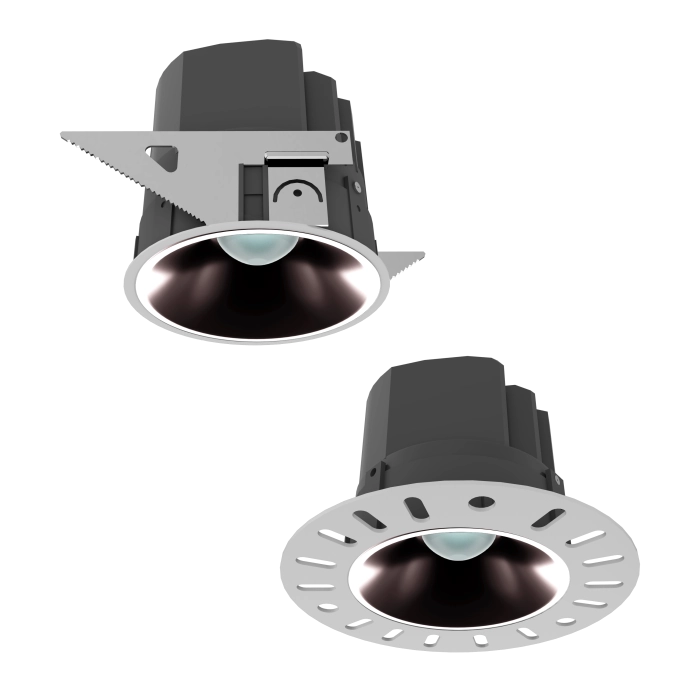

  • Available in both trim and trimless versions, it integrates seamlessly into ceilings for a modern, unobtrusive finish.
  • Comes With multiple reflector finishes, beam angles, and dimming options, Opus Wide offers designers maximum flexibility to craft comfortable, inviting environments in hospitality, retail, and commercial applications.

Enquire Now

Specifications

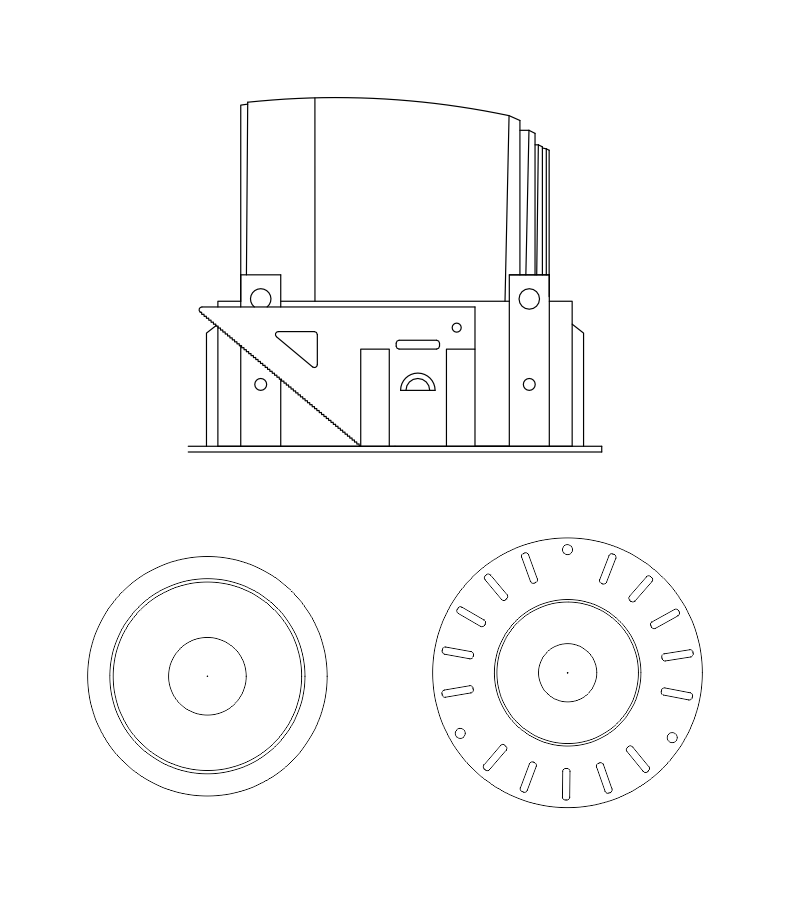

Product Image
Wattage
10W/15W/25W/35W
Lumen
835 lm - 2995 lm
Beam Angle
90°
UGR
<19
IP rating
IP44
Size
4 Sizes
check icon
Wide-Angle Illumination
Engineered for expansive coverage, providing smooth, even lighting across open spaces and larger interiors.
check icon
Trim & Trimless Options
Choose between classic trim or seamless trimless installation to match any architectural ceiling style.
check icon
High-CRI LED Performance
Delivers 95+ CRI for precise color rendering and visual consistency in all lighting conditions.
check icon
Multiple Beam Angles
Available in 15°, 24°, 36°, and 50° options to balance broad illumination with accent lighting flexibility
check icon
Refined Reflector Finishes
Offered in Matte White, Warm Black, Silver, and Gold for coordinated integration with interior design palettes
check icon
Smart Dimming Compatibility
Supports both DALI and 0-10V dimming systems, ensuring smooth control and energy efficiency

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Opus Wide S Trimless 1153 Dia 51 x H 62mm 10 835 2700 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide S Trimless 1153 Dia 51 x H 62mm 10 855 3000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide S Trimless 1153 Dia 51 x H 62mm 10 885 4000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide M Trimless 1156 Dia 68 x H 74mm 15 1245 2700 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide M Trimless 1156 Dia 68 x H 74mm 15 1275 3000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide M Trimless 1156 Dia 68 x H 74mm 15 1315 4000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide L Trimless 1159 Dia 88 x H 93mm 25 2015 2700 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide L Trimless 1159 Dia 88 x H 93mm 25 2065 3000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide L Trimless 1159 Dia 88 x H 93mm 25 2125 4000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide XL Trimless 1162 Dia 105 x H 107mm 35 2925 2700 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide XL Trimless 1162 Dia 105 x H 107mm 35 2980 3000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide XL Trimless 1162 Dia 105 x H 107mm 35 2995 4000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide S 1152 Dia 70 x H 62mm 10 835 2700 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide S 1152 Dia 70 x H 62mm 10 855 3000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide S 1152 Dia 70 x H 62mm 10 885 4000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide M 1155 Dia 87 x H 74mm 15 1245 2700 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide M 1155 Dia 87 x H 74mm 15 1275 3000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide M 1155 Dia 87 x H 74mm 15 1315 4000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide L 1158 Dia 108 x H 93mm 25 2015 2700 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide L 1158 Dia 108 x H 93mm 25 2065 3000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide L 1158 Dia 108 x H 93mm 25 2125 4000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide XL 1161 Dia 130 x H 107mm 35 2925 2700 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide XL 1161 Dia 130 x H 107mm 35 2980 3000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wide XL 1161 Dia 130 x H 107mm 35 2995 4000 95 90 IP44 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
