Opus-Exterior-Trim & Trimless

  • Gallery Image
  • Gallery Image
  • Gallery Image

Opus-Exterior-Trim & Trimless

Interior Spaces

  • The Opus Exterior Series extends the signature Opus design philosophy to outdoor and semi-outdoor spaces, combining precision engineering with weather-resistant performance. Built for durability without compromising aesthetics, it delivers uniform, high-quality illumination with a refined architectural presence.
  • The series offers both trim and trimless options for seamless integration in exterior ceilings, canopies, and covered walkways.
  • Featuring a high CRI of 95, advanced optics, and IP65 protection, Opus Exterior ensures consistent light quality and reliability even in demanding environments.

Enquire Now

Specifications

Product Image
Wattage
10W/15W/25W/35W
Lumen
885 lm - 2770 lm
Beam Angle
15°/24°/38°
UGR
<19
IP rating
IP65
Size
4 Sizes
check icon
Outdoor-Ready Design
Engineered with IP65-rated protection for reliable performance against dust, moisture, and environmental exposure
check icon

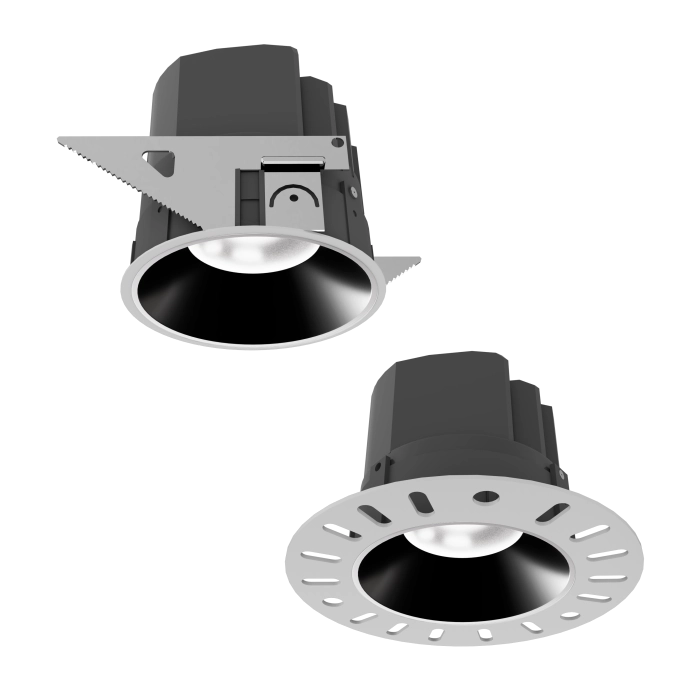

Trim & Trimless Integration
Available in both configurations to achieve either a defined architectural edge or a clean, seamless ceiling finish
check icon
High-CRI Performance
Delivers 95+ CRI for exceptional color accuracy, ensuring natural illumination in exterior applications
check icon
Precision Optics
Deep-set reflector design provides superior glare control and uniform light distribution
check icon
Flexible Beam Angles
Available in 15°, 24°, 36°, and 50° options for tailored lighting coverage across various outdoor settings.
check icon
Premium Reflector Finishes
Choose from Matte White, Warm Black, Silver, or Gold finishes to complement exterior design palettes
check icon
Optional Accessories
Compatible with honeycomb filters for added beam control and visual comfort.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 885 2700 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable - Download Download Download
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 885 2700 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 885 2700 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 910 3000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable - Download Download Download
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 910 3000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 910 3000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 935 4000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable - Download Download Download
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 935 4000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S Trimless 1165 Dia 51 x H 62mm 10 935 4000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1330 2700 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1330 2700 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1330 2700 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1365 3000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1365 3000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1365 3000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1405 4000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1405 4000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M Trimless 1168 Dia 68 x H 74mm 15 1405 4000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2090 2700 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2090 2700 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2090 2700 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2145 3000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2145 3000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2145 3000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2205 4000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2205 4000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L Trimless 1171 Dia 88 x H 93mm 25 2205 4000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2625 2700 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2625 2700 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2625 2700 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2695 3000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2695 3000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2695 3000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2770 4000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2770 4000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XLTrimless 1174 Dia 105 x H 107mm 35 2770 4000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 885 2700 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable - Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 885 2700 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 885 2700 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 910 3000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable - Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 910 3000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 910 3000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 935 4000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable - Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 935 4000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior S 1164 Dia 70 x H 62mm 10 935 4000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1330 2700 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1330 2700 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1330 2700 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1365 3000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1365 3000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1365 3000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1405 4000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1405 4000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior M 1167 Dia 87 x H 74mm 15 1405 4000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2090 2700 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2090 2700 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2090 2700 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2145 3000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2145 3000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2145 3000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2205 4000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2205 4000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior L 1170 Dia 108 x H 93mm 25 2205 4000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2625 2700 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2625 2700 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2625 2700 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2695 3000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2695 3000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2695 3000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2770 4000 95 15 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2770 4000 95 24 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Exterior XL 1173 Dia 130 x H 107mm 35 2770 4000 95 38 IP65 Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
