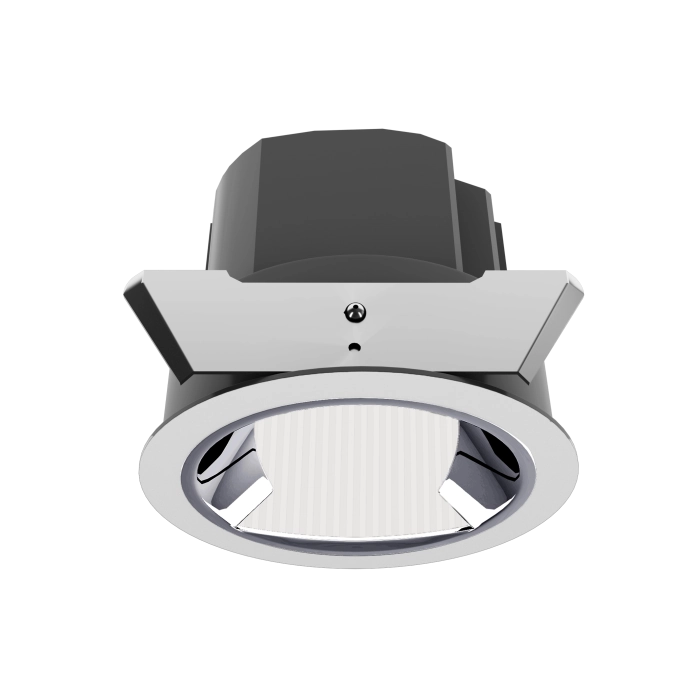

Opus-Wallwash-Trim

Interior Spaces

  • The Opus Wallwash Series is crafted to deliver refined, even vertical illumination that enhances architectural surfaces and interior details. Combining high-CRI LED performance with precise optical control, it creates soft gradients of light ideal for highlighting walls, artwork, or textured finishes.
  • The deep reflector design ensures uniform brightness from ceiling to floor with minimal glare.
  • Offered in a trim version for clean ceiling integration, Opus Wallwash brings both visual depth and balanced illumination to hospitality, retail, and residential interiors.

Enquire Now

Specifications

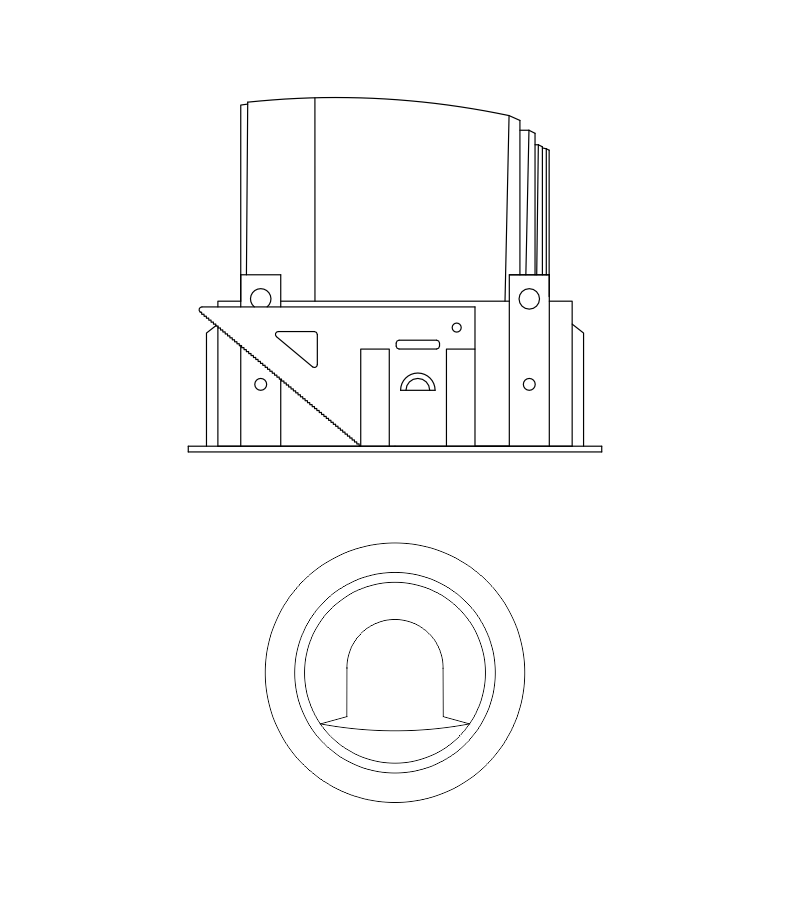

Product Image
Wattage
10W/15W/25W/35W
Lumen
715 lm - 2635 lm
Beam Angle
Wallwash
UGR
<19
IP rating
IP20
check icon
Uniform Vertical Illumination
Engineered for smooth, consistent wall lighting from top to bottom, eliminating hotspots and shadows.
check icon
High-CRI LED Light Source
Delivers 95+ CRI for true-to-life color rendering and enhanced surface detail.
check icon
Optimized Wallwash Optics
Specially designed reflector system directs light precisely across vertical planes for superior coverage.
check icon
Trim Integration
Features a sleek trim design that blends seamlessly into architectural ceilings for a refined finish.
check icon
Reflector Finish Options
Available in Matte White, Silver, Black, and Gold to complement various interior design aesthetics.
check icon
Reliable Dimming Compatibility
Supports DALI and 0-10V dimming for smooth, flicker-free light control.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Opus Wallwash S 1176 Dia 70 x H 62mm 10 715 2700 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash S 1176 Dia 70 x H 62mm 10 735 3000 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash S 1176 Dia 70 x H 62mm 10 755 4000 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash M 1179 Dia 87 x H 74mm 15 1065 2700 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash M 1179 Dia 87 x H 74mm 15 1095 3000 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash M 1179 Dia 87 x H 74mm 15 1125 4000 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash L 1182 Dia 108 x H 93mm 25 1695 2700 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash L 1182 Dia 108 x H 93mm 25 1735 3000 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash L 1182 Dia 108 x H 93mm 25 1790 4000 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash XL 1185 Dia 130 x H 107mm 35 2495 2700 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash XL 1185 Dia 130 x H 107mm 35 2560 3000 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
product-img Opus Wallwash XL 1185 Dia 130 x H 107mm 35 2635 4000 95 Wallwash IP20 NA Non Dim/Triac Dim/Analog Dim/DALI Dim/DALI Tunable/RF Tunable Download Download Download Download
