Trinsic-disc

Interior Spaces

The Trinsic Disc offers a unique aesthetic within the Trinsic family, featuring a wide, prominent head that functions as a stylish downlight plate.
It's cylindrical body provides excellent thermal management, while the wide disc face makes a clean, geometric statement on the ceiling or wall.
This fixture is perfect for achieving a sophisticated, contemporary look where the light source itself is intended to be a deliberate, visual design element

Enquire Now

Specifications

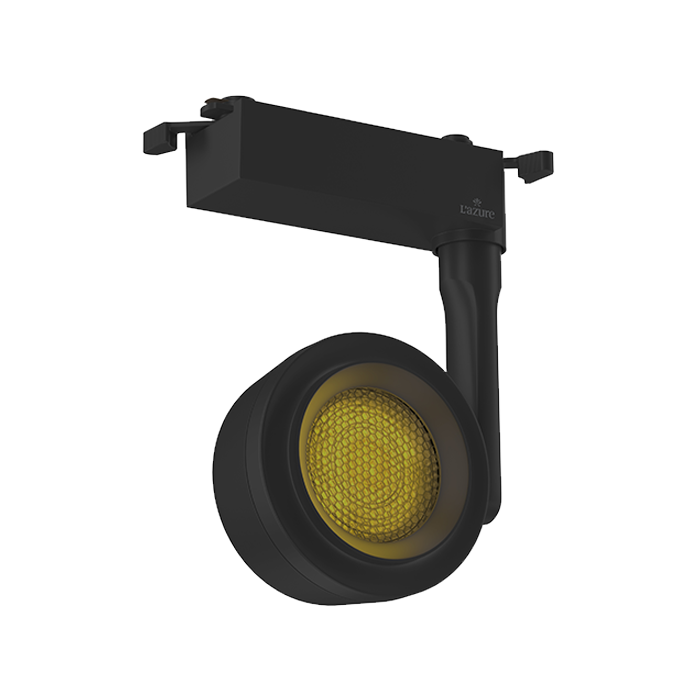

Product Image

Wattage

10W/18W

Lumen

830 lm - 1575 lm

Beam Angle

15°/24°/38°

UGR

< 19

IP rating

IP20

Distinct Aesthetic

Features a wide, plate-like Disc head for a unique, geometric appearance.

Compact Integration

Available in two compact sizes: Ø74mm and Ø103mm

High-CRI Lighting

Delivers the Trinsic standard of light quality with a Typ CRI 95.

Flexible Placement

Designed for use as an accent or downlight in contemporary spaces.

Product Details

Size

Wattage

Lumens

CCT

CRI

Beam Angle

Model	Model Name	Model No	Size	Wattage	Lumens	CCT	CRI	Beam Angle	IP Rating	Accessories	Dimming Option	Specssheet	2D	3D	Installation Manual
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	830	2700	95	15	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	830	2700	95	24	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	830	2700	95	38	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	850	3000	95	15	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	850	3000	95	24	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	850	3000	95	38	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	875	4000	95	15	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	875	4000	95	24	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc S	1495	Dia 74 x H 140mm	10	875	4000	95	38	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1494	2700	95	15	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1494	2700	95	24	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1494	2700	95	38	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1530	3000	95	15	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1530	3000	95	24	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1530	3000	95	38	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1575	4000	95	15	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1575	4000	95	24	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
	Trinsic Disc M	1496	Dia 103 x H 140mm	18	1575	4000	95	38	IP20	Honeycomb	Non Dim/Triac Dim/Analog Dim/DALI Dim	Download	Download	Download	Download
