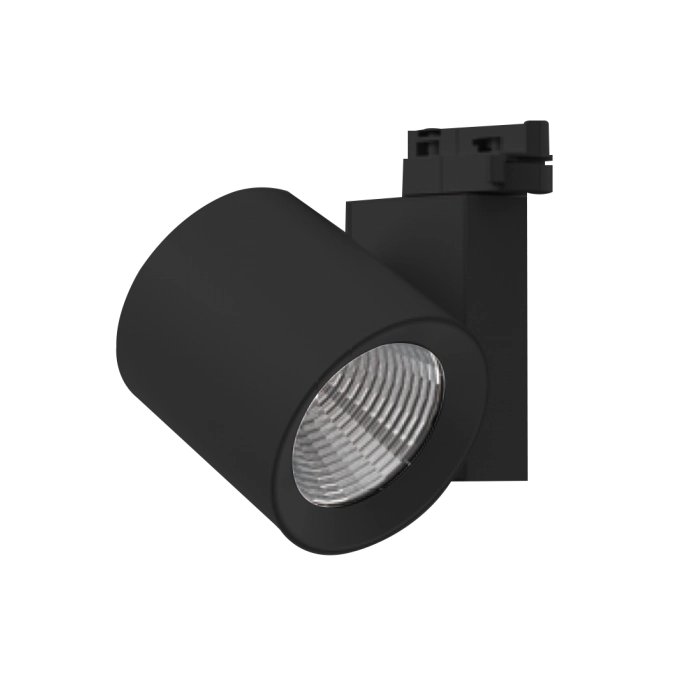

  • Gallery Image

Trinsic-Ace-Side Box

Interior Spaces

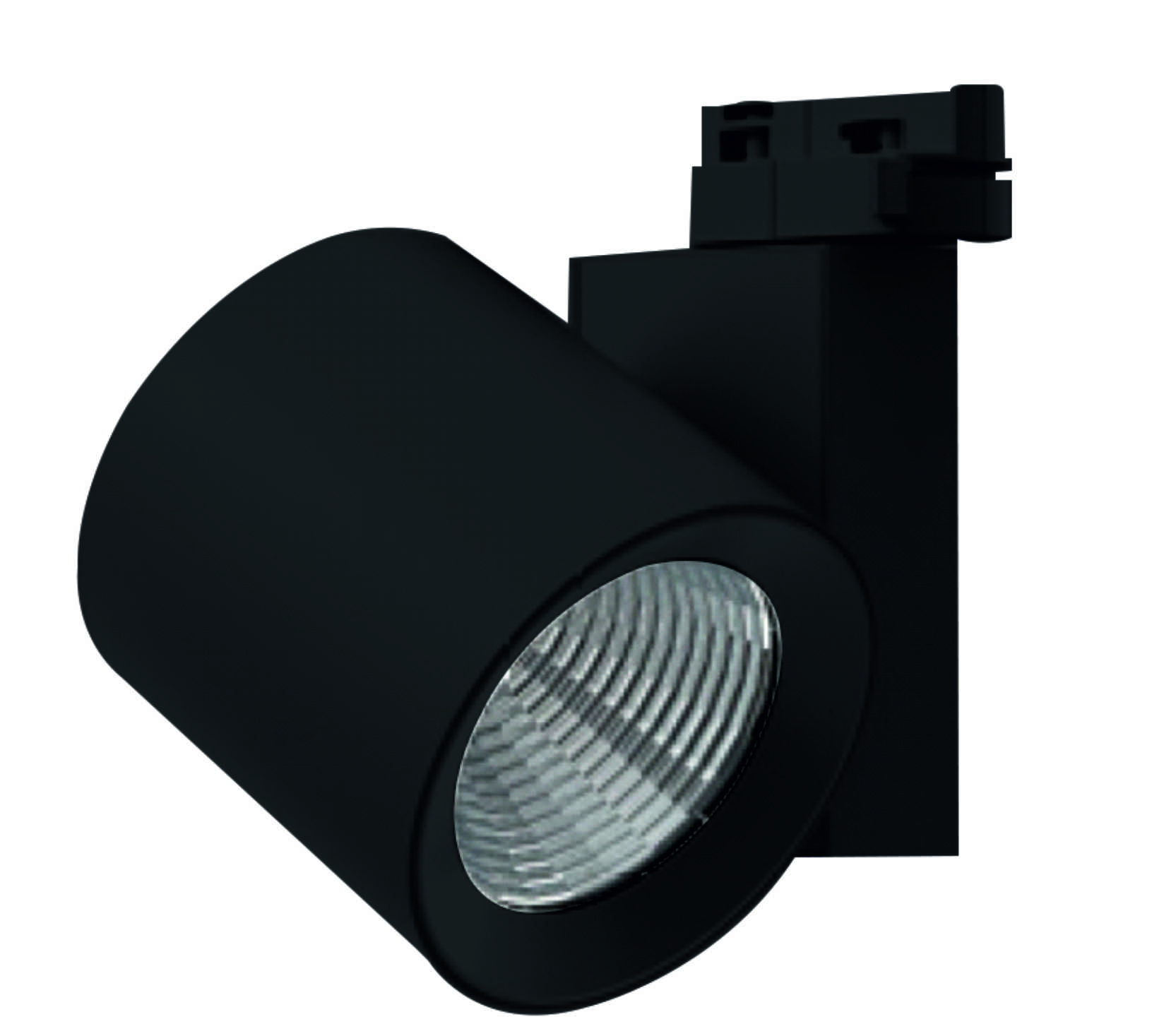

  • The Ace Side Box features an innovative design where the driver housing is mounted to the side of the cylindrical light body, creating a striking, modern, and asymmetric profile.
  • This unique look makes a bold design statement while offering the same high thermal efficiency as the Top Box.
  • It is the perfect accent lighting solution for contemporary spaces looking to merge high performance with an unconventional, avant-garde aesthetic.

Enquire Now

Specifications

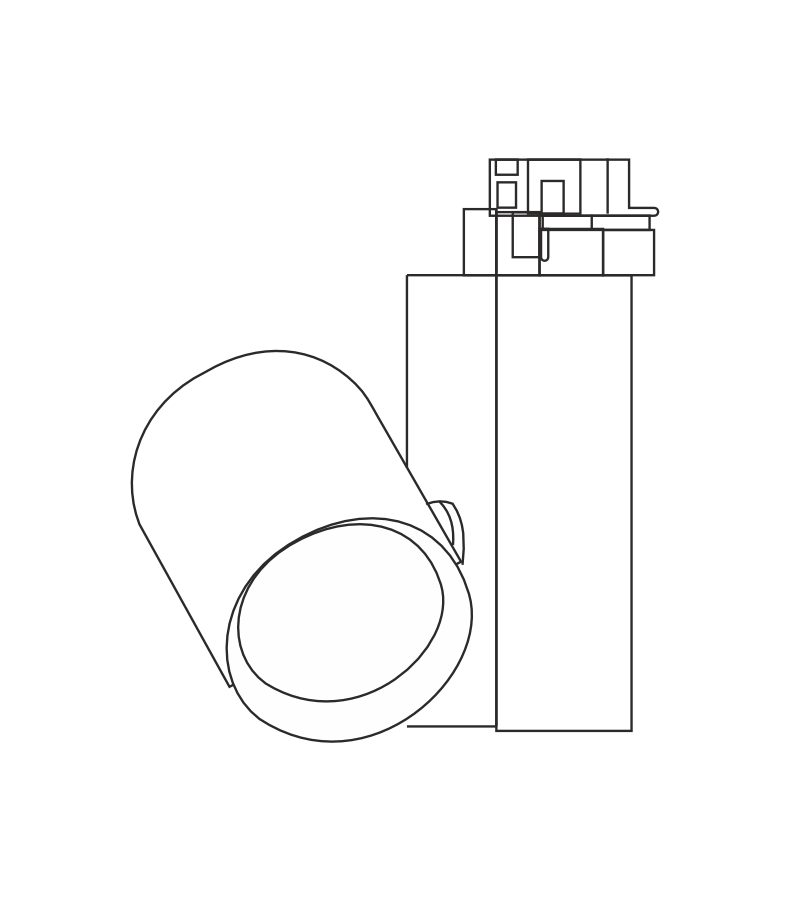

Product Image
Wattage
18W/25W/35W/40W
Lumen
1476 lm - 3444 lm
Beam Angle
15°/24°/38°/45°
UGR
<19
IP rating
IP44
check icon
Unique Aesthetic
Asymmetric Side Box placement creates a modern, distinctive visual profile.
check icon
High Output
Uses a Separate Driver Box to maximize lumen delivery and fixture lifetime
check icon
High CRI 95
Ensures the true and vibrant colors of the illuminated surface are accurately rendered.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1476 2700 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1476 2700 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1476 2700 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1476 2700 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1558 3000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1558 3000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1558 3000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1558 3000 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1640 4000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1640 4000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1640 4000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box S 1611 Dia 73 x H 157mm 18 1640 4000 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 1945 2700 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 1945 2700 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 1945 2700 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 1945 2700 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 1995 3000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 1995 3000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 1995 3000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 1995 3000 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 2055 4000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 2055 4000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 2055 4000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box M 1612 Dia 83 x H 157mm 25 2055 4000 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 2855 2700 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 2855 2700 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 2855 2700 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 2855 2700 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 2925 3000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 2925 3000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 2925 3000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 2925 3000 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 3015 4000 95 15 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 3015 4000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 3015 4000 95 38 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box L 1613 Dia 96 x H 157mm 35 3015 4000 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box XL 1614 Dia 105 x H 157mm 40 3280 2700 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box XL 1614 Dia 105 x H 157mm 40 3280 2700 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box XL 1614 Dia 105 x H 157mm 40 3362 3000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box XL 1614 Dia 105 x H 157mm 40 3362 3000 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box XL 1614 Dia 105 x H 157mm 40 3444 4000 95 24 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
product-img Trinsic Ace Side Box XL 1614 Dia 105 x H 157mm 40 3444 4000 95 45 IP20 Softening Lens/Honeycomb Non Dim/Triac Dim/Analog Dim/DALI Dim Download Download Download Download
