Joule discreet tilt grid 230

  • Gallery Image

Joule discreet tilt grid 230

Interior Spaces

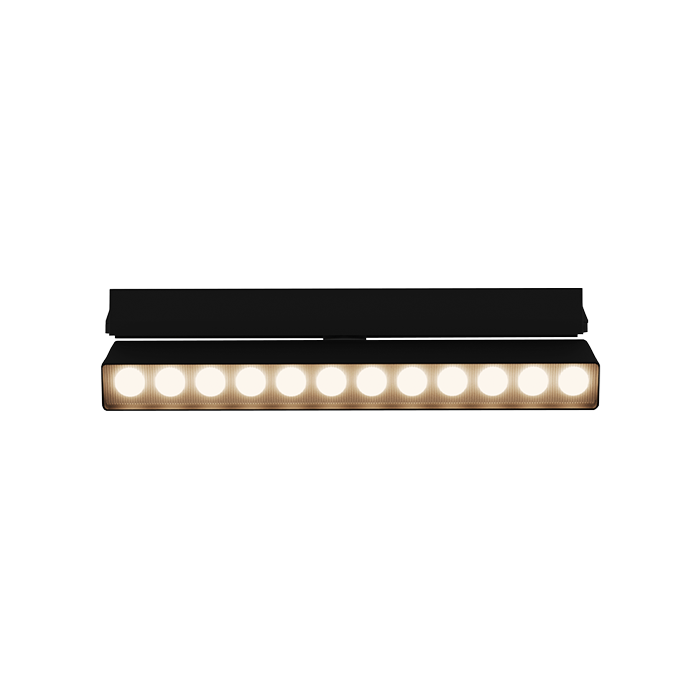

  • Discreet - Tilt Grid is the dynamic version of the Grid module, featuring an integrated tilting mechanism that allows the entire light source to be angled and aimed after installation.
  • This flexibility is essential for environments like galleries, showrooms, and retail stores where displays or art pieces change frequently.
  • It offers the same powerful 12W output and excellent CRI 92 as the fixed version but grants complete freedom to adjust the lighting focus on demand.

Enquire Now

Specifications

Product Image
Wattage
12W - 48V
Lumen
997 lm - 1067 lm
Beam angle
15°/24°/38°
UGR
<19
IP Rating
IP20
check icon
Integrated Tilt Function
Allows the module to be angled and redirected after placement, making it perfect for changing displays and dynamic exhibits.
check icon
Tool-Free Flexibility
Combines the magnetic attachment (for quick repositioning) with the tilting function for maximum adjustment freedom.
check icon
Clean Aesthetic
Maintains the minimalist, clean finish, ensuring that the module remains discreet while providing adjustable focus.

Product Details

Model Model Name Model No Size Wattage Lumens CCT CRI Beam Angle IP Rating Accessories Dimming Option Specssheet 2D 3D Installation Manual

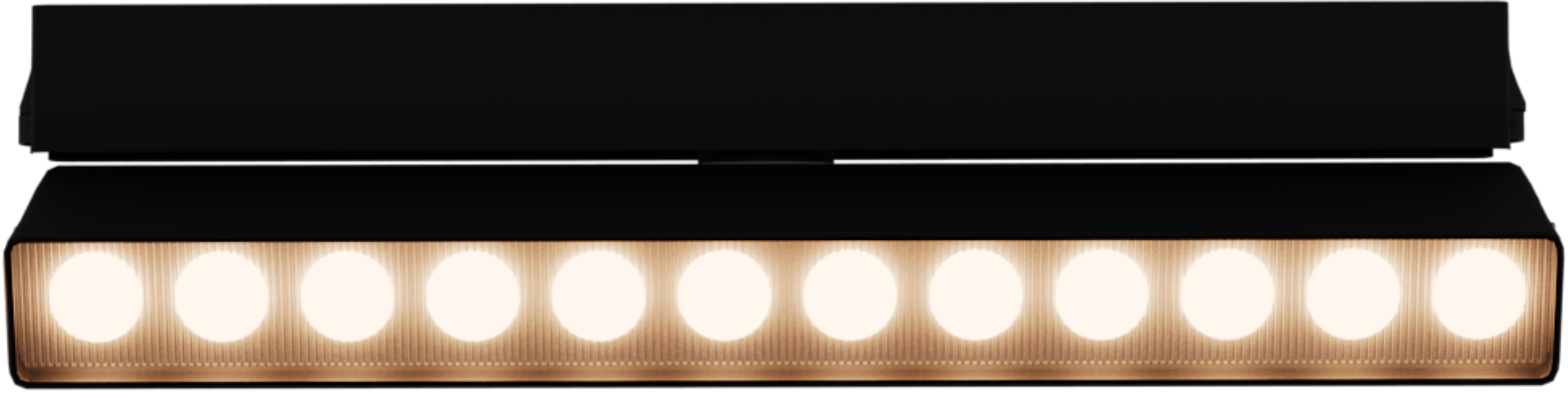

product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 1067 4000 92 38 IP20 NA Non Dim Download Download Download Download
product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 1021 3000 92 24 IP20 NA Non Dim Download Download Download Download
product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 997 2700 92 15 IP20 NA Non Dim Download Download Download Download
product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 1067 4000 92 38 IP20 NA Non Dim Download Download Download Download
product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 1021 3000 92 24 IP20 NA Non Dim Download Download Download Download
product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 997 2700 92 15 IP20 NA Non Dim Download Download Download Download
product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 1021 3000 92 24 IP20 NA Non Dim Download Download Download Download
product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 1067 4000 92 38 IP20 NA Non Dim Download Download Download Download
product-img Joule Discreet Grid Tilt 2239 Width 26mm x Length 230mm 12 997 2700 92 15 IP20 NA Non Dim Download Download Download Download
